Super-compact high speed driver for MediaLas CTR 6212 galvo scanners.
- oscillation prevention circuit
- over temperature protection
- optional coil temperature calculator
- differential input up to 10 V control voltage
- Easy mirroring by using two on board jumpers
- LEDs for realtime status signaling
- Very small dimensions, just 63x50x35mm
Adjustment for Picture Size, Servo Gain, LFD, HFD, Offset and linearity. Inverting jumper. Needs source of +/- 18-30VDC at 1A per voltage. Step time can be as low as 100uS at small step, with CTi 6210HB galvos and small mirrors.
The PID servo controller interprets the feedback signals of the position sensor compared to the target signal of the input and transmits the voltages and currents to the motor necessary to reach the desired position are rapidly as possible. The high-speed control loop with integration link delivers excellent, responsive movement with the fast acceleration and braking ramps which are necessary for the fastest positioning movements and the lowest jump times. The damping links ensure that settling times are kept as short as possible. This made is possible to achieve further gains in terms of precision and reproducibility.
On the driver itself, the axis movement can be inverted with a jumper. The inputs are designed to be fully symmetrical, allowing for floating earth actuation. This drastically reduces earth loops or interference. This makes it possible, with a two-wire cable, to eliminate interference, as the interference signals cancel each other out. Power connector and signal connectors are separated. Buffered position outputs also fed out of the connector.
The MicroAmp is very durable when it comes to overheating on the output stage. The integrated protection against overheating switches the output stage off if the temperature is too high, so that no defect occurs. To ensure sufficient cooling, the MicroAmp should be mounted to an adequately dimensioned metallic surface. The temperature on the back part of the heat sink should be below 70°C.
Ideal replacement for the discontinued MicroMax 677xx driver.
Delivery content:
- Pretuned MicroAmp IV galvo driver
- Mounted on aluminum bracket
- Connectors for source and signal
- Manual
Technical Details:
| Input: |
Symmetric ground free, voltage adjustable up to +/-10V |
| Source: |
+/-18VDC min, +/-30VDC max, ca. 2 A per voltage. Peak up to 10 A |
| Step time: |
depends on Galvo, from ca. 100uS Small Step angle |
| Adjustments: |
Size, Servo Gain, LFD, HFD, Offset, Linearity, feedback diode current |
| Input impedance: |
ca. 400 kOhm |
| Signaling LEDs: |
Source voltage, input signals |
| Operating temperature: |
-15°C to +60°C |
| Dimensions: |
ca. 50 x 63 x 35mm |
| Scope of delivery: |
MicroAmp IV on aluminum bracket, connectors for input and source |
| Fitting Galvos: |

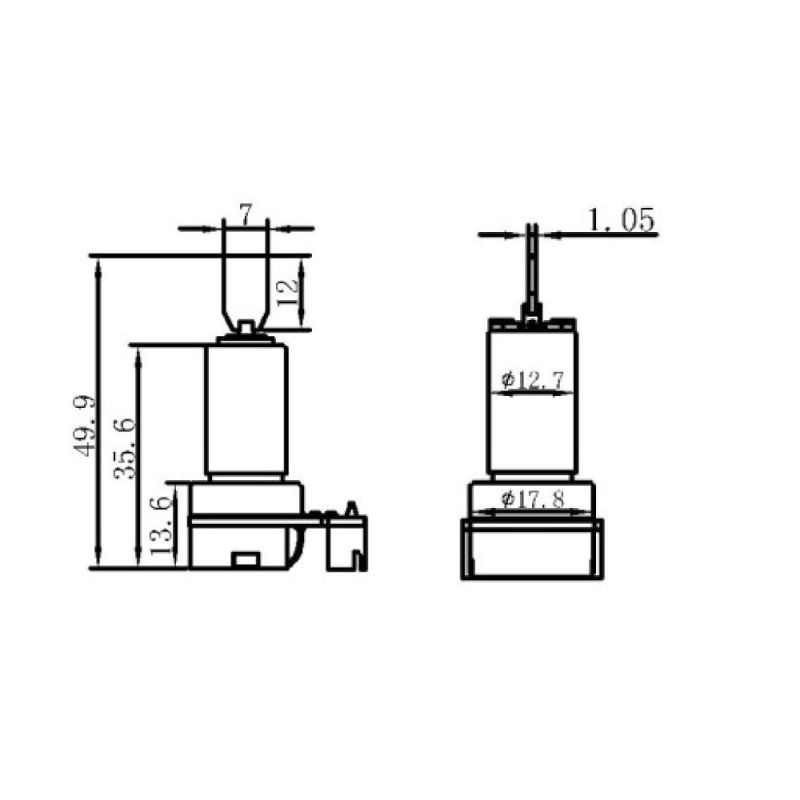

CTR 6212 |
| Limiters: |
Over current, over temperature, optional over power |
