Miniature line laser modules with high visibility for integration into other machines. Adjustable focus and line position, very high reliability and service life.

MediaLas line lasers are small, well-thought-out, and powerful all-rounders. Our modular system enables a multitude of module variants, in order to always achieve the optimal results required each day in the production area. Alongside the extremely small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a very long service life. Especially the 12mm modules are very easy for the user to calibrate and adjust for their respective application. Both the focus, i.e. the line width at the focal point, as well as the line position can be adjusted. This is quick and easy to achieve by turning the front brass ring, which also contains the optics.

The very precise plastic optics can be swapped at any time or replaced with glass elements, even with the unit still installed. You can find various options for this in our shop, as well as spare parts or accessories.

Various brackets are available, which are adjustable in several different axes, for mounting to the machine or the workplace. This makes it possible to set practically any beam position. Adjustment is possible in all directions.

Our Design Department is always at your disposal to discuss customer-specific requirements.

Electrical connection

Standard: Flexible wires, red and black, 20cm

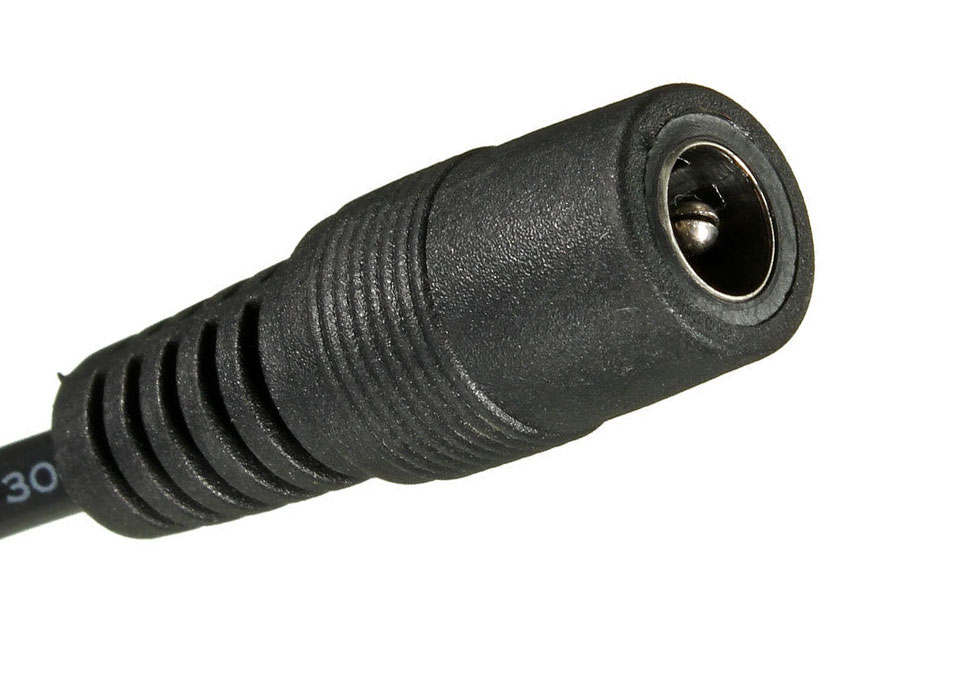

Plug type PSU: The 230V version includes a cable with DC connector, and fitting plug type power supply.

12 - 25V version: The laser modules are equipped with a 1m flexible connecting cable. A small adaptor electronics is shrinked into the cable. Connecting ends are equipped with wire termination, to connect to any kind of power supply or distributing bus. A reverse voltage protection is mandatory.

TECHNICAL DETAILS

Laser power:	ca. 30mW
Wavelength/Color:	655nm RED
Drawing angle:	selectable
Focus range:	ca. 5cm up to infinity
Minimum line width:	<1mm at close distance
Divergence angle:	adjustable, typ. <1mrad
Power supply:	3 - 5 VDC standard, optional 12 - 26 VDC
Current draw:	< 100 mA
Laser class after installation:	Class 1, check safety information
Dimensions module:	12 x 37/42mm
Temperature range	- 10°C - +45°C
Lifetime:	typ. > 25.000 h

LINE LENGTH

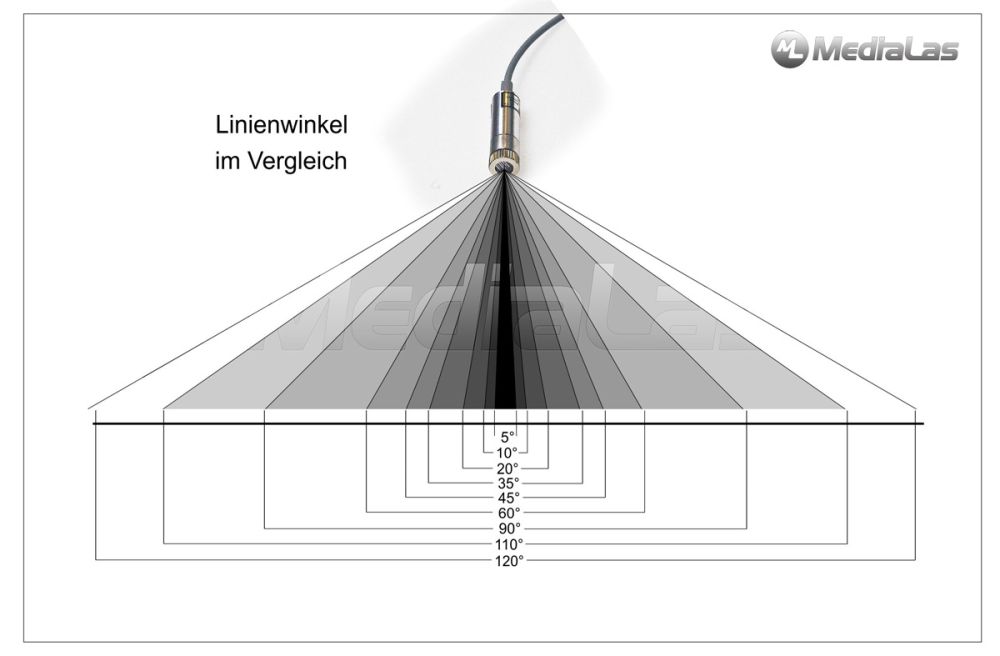

Depending on the particular use case, modules with different beam angles can be selected, which generates the length of the laser line. The larger the beam angle, the longer the line will be. For our OEM modules, the following angles are available:

Angle	Distance	Line length approx.
5°	1 m	8 - 9 cm
10°	1 m	17 cm
20°	1 m	0,34 m
35°	1 m	0.62 m
45°	1 m	0.85 m
60°	1 m	1.16 m
90°	1m	2m
110°	1 m	3 m
120°	1 m	3,4 m

The line length increases linearly as the distance increases. Therefore at 2 m, the line length is also twice as long.

LINE WIDTH

On our 12mm modules, the line width (also known as "focus") can be adjusted quickly and easily to the desired size or distance. The optics are mounted in the brass ring on the front, and can be adjusted very easily and safely with a fine thread. This makes it possible to adjust the line width to the technically feasible optimum setting for any distance desired. Once the desired line width has been located, the optics are secured in the thread with thread locker. We would be happy to set the focus to a predetermined value for you upon request.

VISIBILITY AND BRIGHTNESS

The brightness of the laser line is determined by many factors. As a principle:

Line length: The longer the line, the lower the brightness, as the light output is distributed across a larger surface area
Laser colour: Green is significantly more effective than red or blue
Operating surface: The darker and more matte the surface, the dimmer the light appears
Ambient brightness: The brighter the ambient light, the dimmer the laser line appears. This is determined by the human eye, which reduces its sensitivity to suit the level of ambient brightness. In direct sunlight, it is very difficult to even recognise a laser line, as the retina is already saturated.
Laser output: The higher the output of the laser, the brighter the laser line appears

LASER SAFETY

You will receive further, detailed information with each delivery of our line laser modules and associated equipment. We are at your disposal and would be happy to advise in this matter.

EQUIPMENT/OPTIONS

The modules are equipped as standard with a high-quality, aspherical acrylic glass lens, which enables an excellent beam quality and focus of the laser beam. The module can optionally be fitted with a three-lens glass collimator. This primarily has an effect on the temperature stability of the focus. The standard acrylic lenses may alter the focus in case of larger temperature differences, which can cause a change in the beam width. Where the operating temperature in the module's installation location fluctuates in the range +/-5°C, an acrylic glass lens is preferable, because it offers slightly better focusing at short distances than glass optics, which in turn offer better beam characteristics in the long-distance range (>2 m). If, however, larger temperature fluctuations occur, the glass lens should be chosen, so that the focus does not shift.

For a high deflection angle (110°), we offer glass lens optics, which produce a gauss-like distribution of the light. The laser line is bright at the centre and then gets ever darker as it reaches the edges of the beam, whereas the normal optics produce a rather even distribution across the full beam width. Of course, this line lens can also be combined with the glass collimator.
