Overview:
Industrial line laser kit with adjustable mount, fully calibrated. The wide voltage input range and high IP class enable extremely broad use in numerous industrial applications and environments, including dust and hunidity.
These laser modules are equipped with ACC control, so that a high degree of stability is guaranteed. Additionally, we have installed a so-called “start ramp” in the integrated electronics, which slowly increases the current in the start-up moment. This dramatically reduces risks to the laser diode due to switch-on peaks. You can therefore assume the maximum in reliability with these modules.
InLine modules can be equipped with various line angles. Furthermore, the design also permits customer-specific setting of the focus length or line width. The cylindrical housing can be clamped in a bracket, which additionally dissipates the gentle heat produced and therefore also increases the service life.
Assembly and line length:

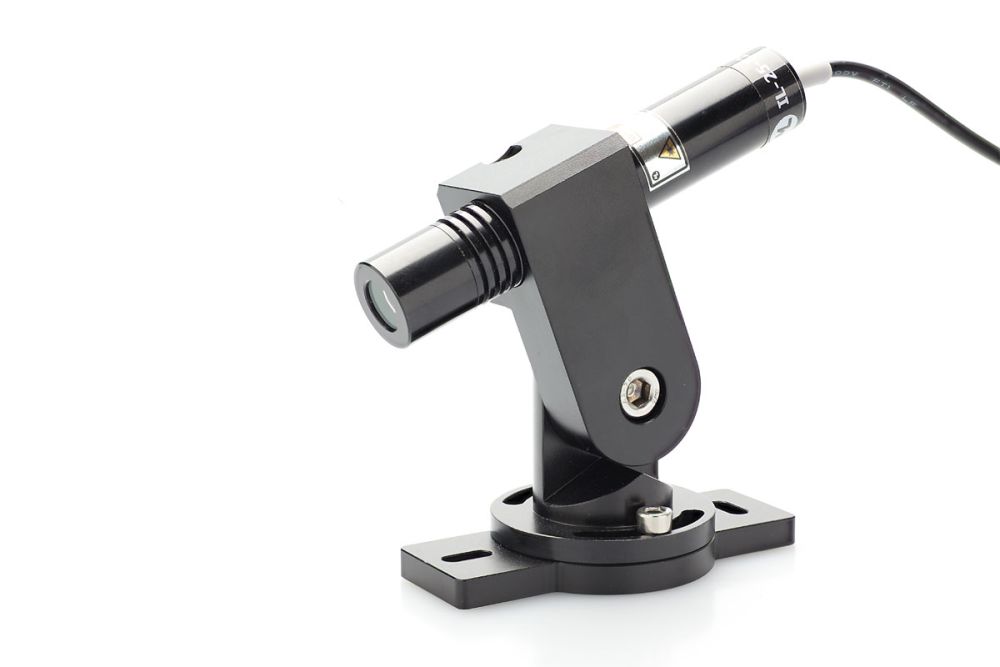

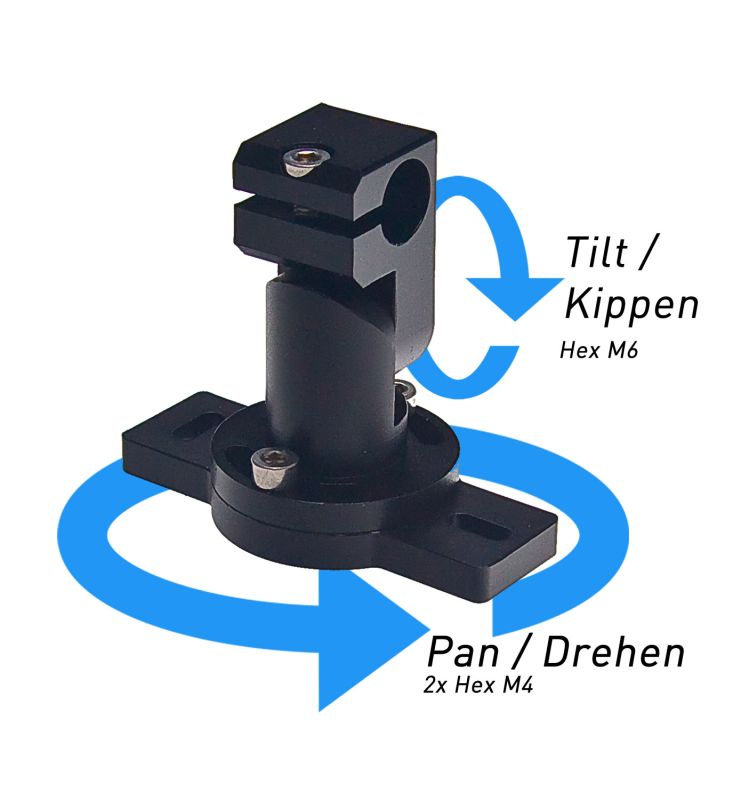

The cylindrical housing with a diameter of 18mm can be easily set in the specially designed, adjustable bracket. This clamps the line laser so that the housing is not damaged. At the same time the generated heat, which is very low with these modules, is dissipated via the bracket onto a metallic surface. The line position is simply adjusted by twisting the laser module in the bracket. The stable aluminium bracket can be adjusted through pan-and-tilt, and clamped. A guide pin additionally sits in the mounting foot, for clean concentricity during the adjustment process. The mounting plate facilitates fastening from the front and rear, by means of threaded inserts.
If the laser is mounted vertically over a work surface, the line length is determined by the distance and projection angle. With inclined mounting, the line length can lengthen significantly.
Electrical connection

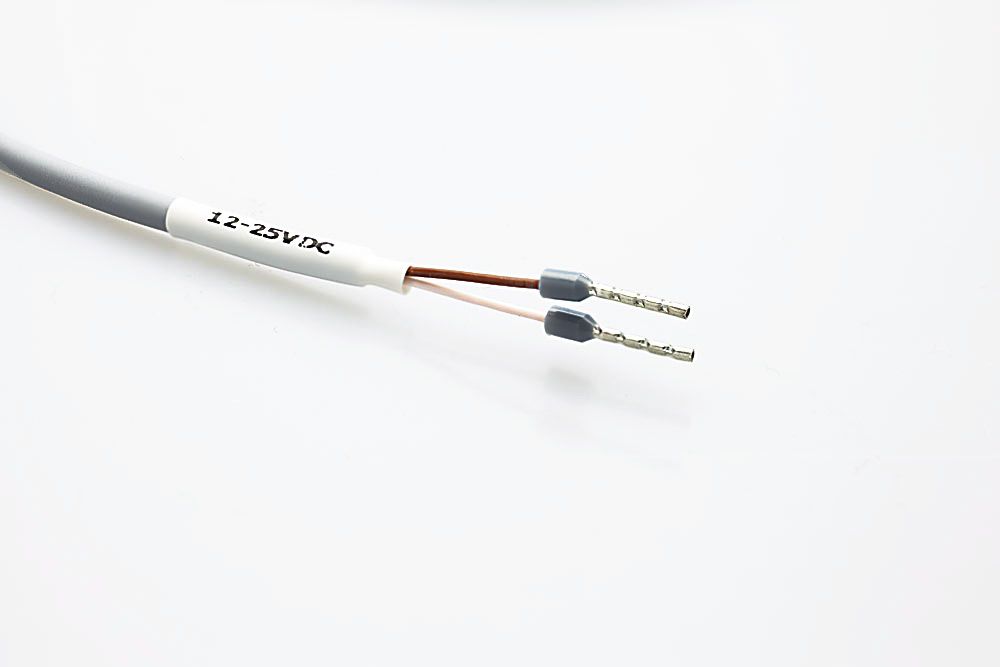

The laser modules are equipped with a flexible connecting cable. Connecting ends are equipped with wire termination or DC connector, to connect to any kind of power supply or distributing bus. A reverse voltage protection is mandatory.
TECHNICAL DETAILS
Laser power: |
150 mW |
Wavelength/Color: |
520 nm GREEN |
Drawing angle: |
selectable |
Power supply: |
12 - 25 VDC, optional 100 - 240 VAC |
Laser class after installation: |
Class 1/2, check safety information |
IP class: |
IP65, optional IP67 |
Dimensions module: |
18 x 100 mm |
Dimension bracket: |
ca. 86 h x 45 b x 80 mm |
Temperature range |
- 15°C - +45°C |
Lifetime: |
typ. > 25.000 h @ < 25" C ambient |
LINE LENGTH
Depending on the particular use case, modules with different beam angles can be selected, which generates the length of the laser line. The larger the beam angle, the longer the line will be. For our OEM modules, the following angles are available:
Angle |
Distance |
Line length approx. |
10° |
1 m |
17 cm |
20° |
1 m |
0,34 m |
35° |
1 m |
0.62 m |
45° |
1 m |
0.85 m |
60° |
1 m |
1.16 m |
90° |
1m |
2m |
110° |
1 m |
3 m |
The line length increases linearly as the distance increases. Therefore at 2 m, the line length is also twice as long.
VISIBILITY AND BRIGHTNESS
The brightness of the laser line is determined by many factors. As a principle:
- Line length: The longer the line, the lower the brightness, as the light output is distributed across a larger surface area
- Laser colour: Green is significantly more effective than red or blue
- Operating surface: The darker and more matte the surface, the dimmer the light appears
- Ambient brightness: The brighter the ambient light, the dimmer the laser line appears. This is determined by the human eye, which reduces its sensitivity to suit the level of ambient brightness. In direct sunlight, it is very difficult to even recognise a laser line, as the retina is already saturated.
- Laser output: The higher the output of the laser, the brighter the laser line appears
LASER SAFETY
Local rules and regulations have to be followed. You will receive further, detailed information with each delivery of our line laser modules and associated equipment. We are at your disposal and would be happy to advise in this matter.
Note
- Pay attention to the class of the laser!
OPTIONAL
- Power supply unit
- IP67 rating
- Customer specific adjustable focus
- Customer specific cable length
We are at your disposal to respond to any questions about classification in your environment.
