This is a very small and sophisticated laser diode driver for diode current up to 2 A, with a very low voltage loss over the regulation circuit.
The diode voltage can be as high as 24 V, which allows the serial connection of multiple laser diodes, like 4x OSRAM blue diode in series ( ca. 19.5V). Diode current is adjusted via an onboard potentiometer
Modulation is fully analog, which allows either TTL 0-5V or analog 0-5V. Input is fully overvoltage protected against DC or spikes. Additionally, we added a "cw" jumper, to run the laser diodes without extra modulation input.
Technical information
| Maximum Current: |
2 A |
| Maximum Diode voltage: |
ca. 24 V |
| Maximum Operating Voltage: |
ca. 25 V |
| Minimal Voltage Drop: |
ca. 0,5 - 1 V |
| Modulation: |
0 - 50 kHz |
| Modulation Voltage: |
0-5V TTL or Analog |

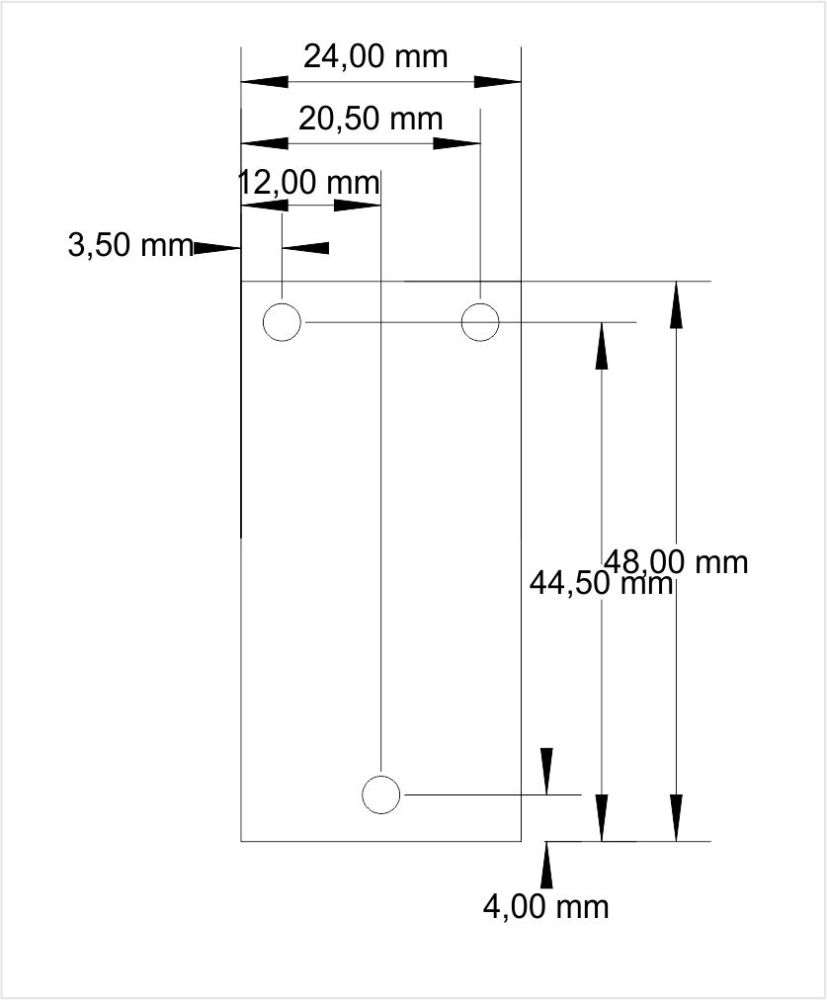

| Dimensions: |
48 x 24 mm |
Driver comes with fitting connectors and flat ribbon cable 25 cm. Longer cables are available on request.
Transistor must be heatsinked for regular operation!
