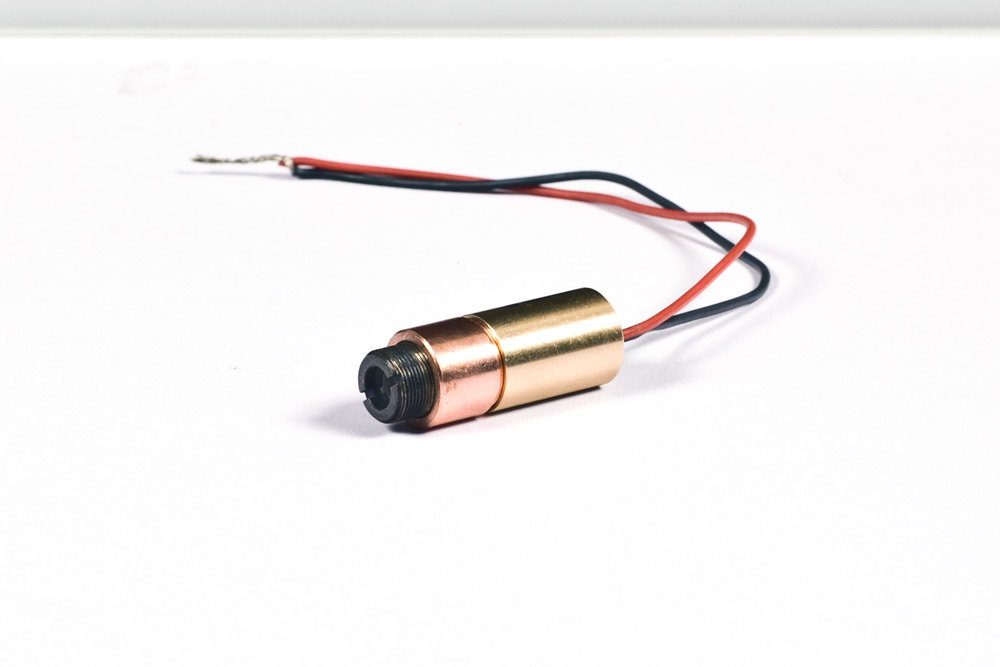

Ready-to-go assembly, consisting of:
- Laser diode 1.6 W 450 nm
- Copper mount
- Glass collimator, selectable
- Fixing spring
- Connecting wires
The new design of the diode socket, made of copper, provides much better heat transfer from the laser diode to an additional heat sink.
| Diode: |
1.6 W 450 nm |
| Size: |
12 mm diameter, ca. 40 mm length |
| Collimator: |
Glass, adjustable |
| Connection |
20cm open wire for Laser diode |
Optional
- Single lens glass collimator f=4.05mm LA for maximum Effiziency. Divergence is increased.
- 3-lens glass collimator f=8.5mm LA for lower Divergence. Effiziency is lower compared to model "LA".
ACHTUNG! NO driver included. Please order separately.
