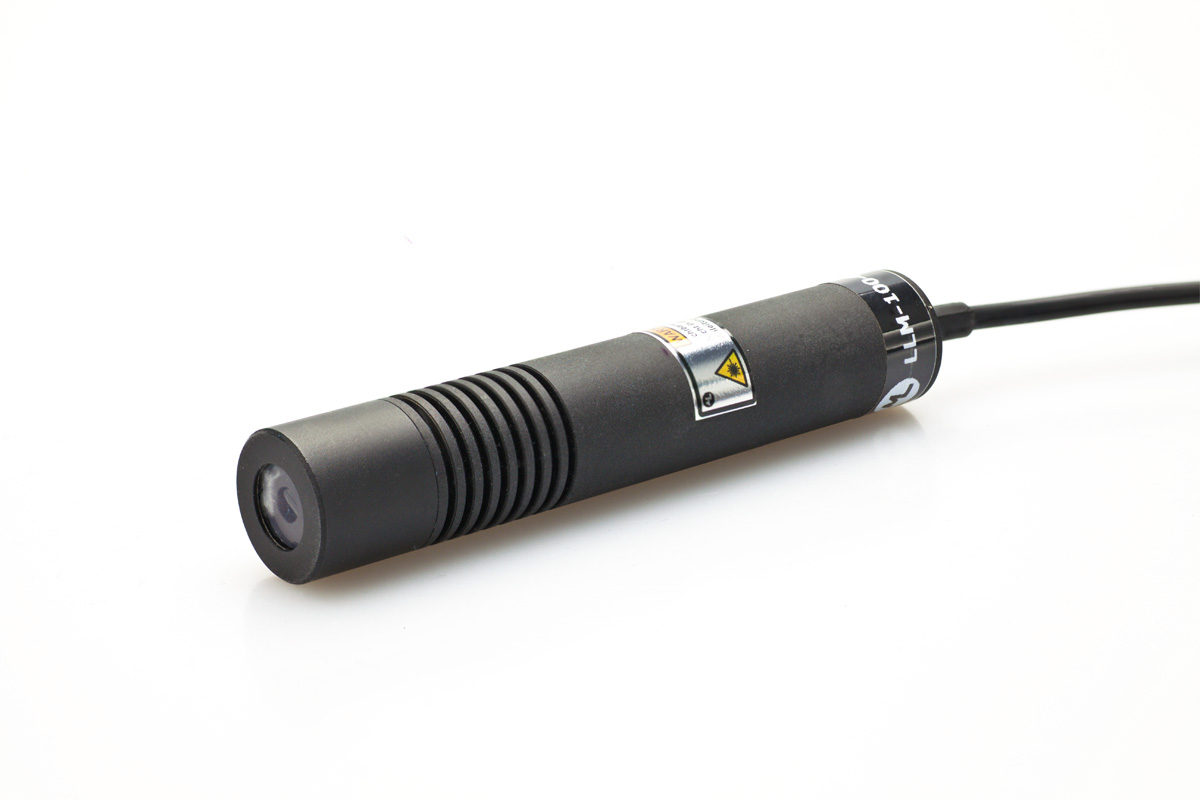

Compact and reliable, watersealed diode laser module with red 648nm @ 60 mW. Integrated diode driver for constant current.
Technical Info:
| Laser power: |
60 mW |
| Wavelength / color: |
648 nm red |
| Focus range: |
infinity |
| Divergence angle: |
typ. <0.7 mrad |
| Power source: |
5 - 6 VDC / < 150 mA |
| Length of wires: |

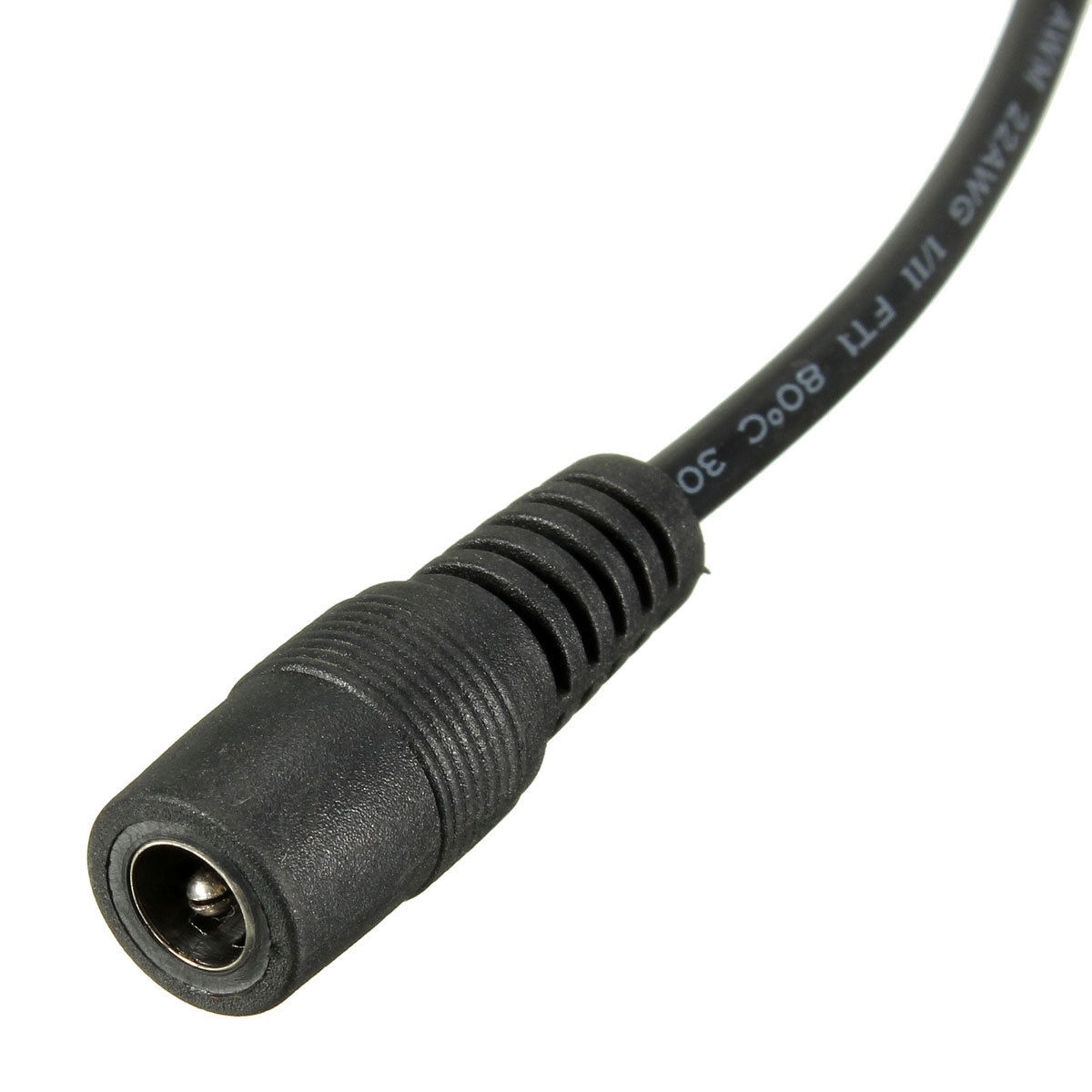

DC connector ca. 1000 mm |
| Dimensions: |
18 x 100 mm |
| Temperature range |
- 15°C - + 40°C |
| IP classification |
IP 65 |
| Lifetime MTTF: |
typ. > 25.000 h |
We are at your disposal to respond to any questions about classification in your environment.
Do you require a written quotation or larger number of units? No problem! Contact us, we would be happy to produce a quotation taking account of your individual requirements!
