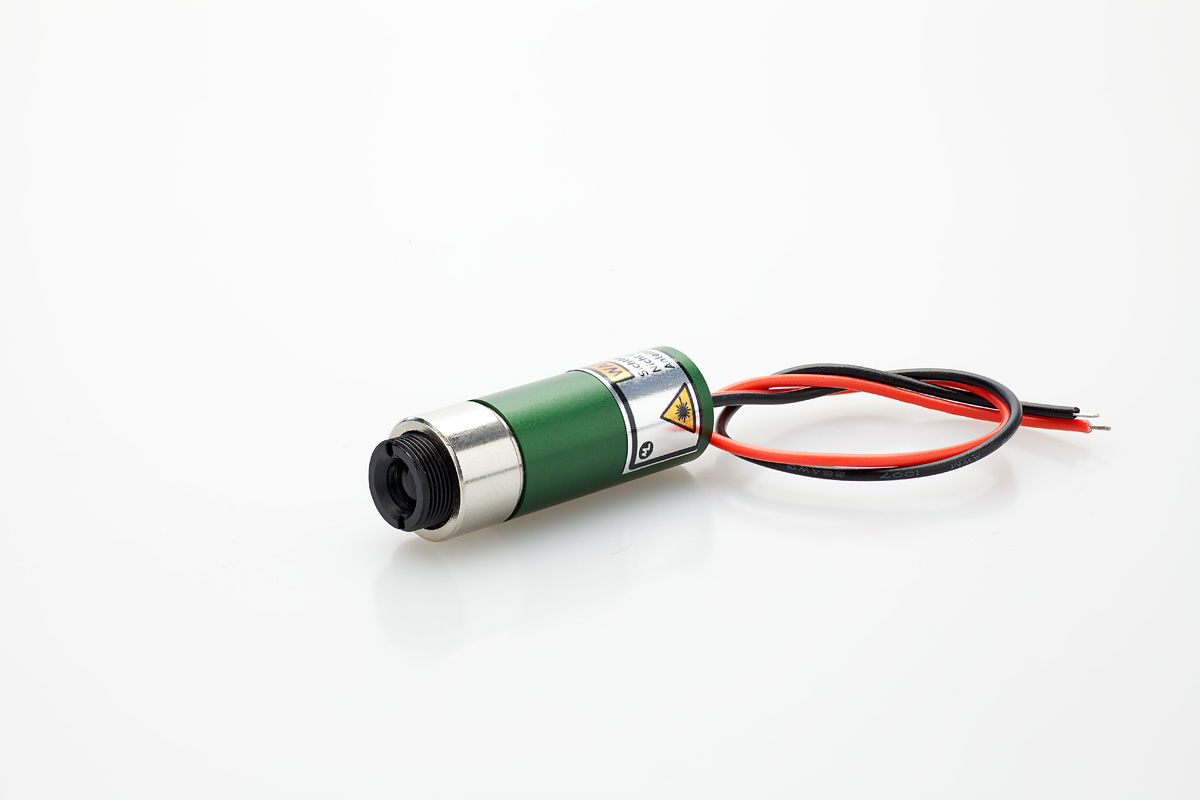

Dot laser module 1mW 520nm GREEN, adjustable focus, optical stabilized, class II
Dot laser module 1mW 520nm GREEN, adjustable focus, optical stabilized, class II
Small, compact and reliable diode laser module with green 520nm @ 1 mW. Adjustable collimator for customer specific focal length. Diode driver with optical feedback for power stabilization.
Laser Power: < 1 mW
Wavelength: 520 nm
Beam: <3mm, divergence <0.7mrad full angle
Voltage: 9 VDC / < 50mA
Cable length: 200 mm open wires / 200mm barrel connector / 1m supply line for 12-24VDC
Temperature: -15 to 45° C
Dimensions: 12 x 37/42 mm
Optional
- 3-element glass lens available, for improved beam characteristics and enhanced temperature stability.
- DC barrel connector
- 12-24V adaptor, shrinked in supply line
