Ready-for-use cross hair laser, complete set, with high visibility for integration into other machines. Adjustable focus and line position, very high reliability and service life.
MediaLas laser complete kits are small, well-thought-out, and powerful all-rounders. Our modular system enables a multitude of module variants, in order to always achieve the optimal results required each day in the production area. Alongside the extremely small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a very long service life. Especially the 12mm modules are very easy for the user to calibrate and adjust for their respective application. Both the focus, i.e. the line width at the focal point, as well as the crossed line position can be adjusted. This is quick and easy to achieve by turning the front brass ring, which also contains the optics.

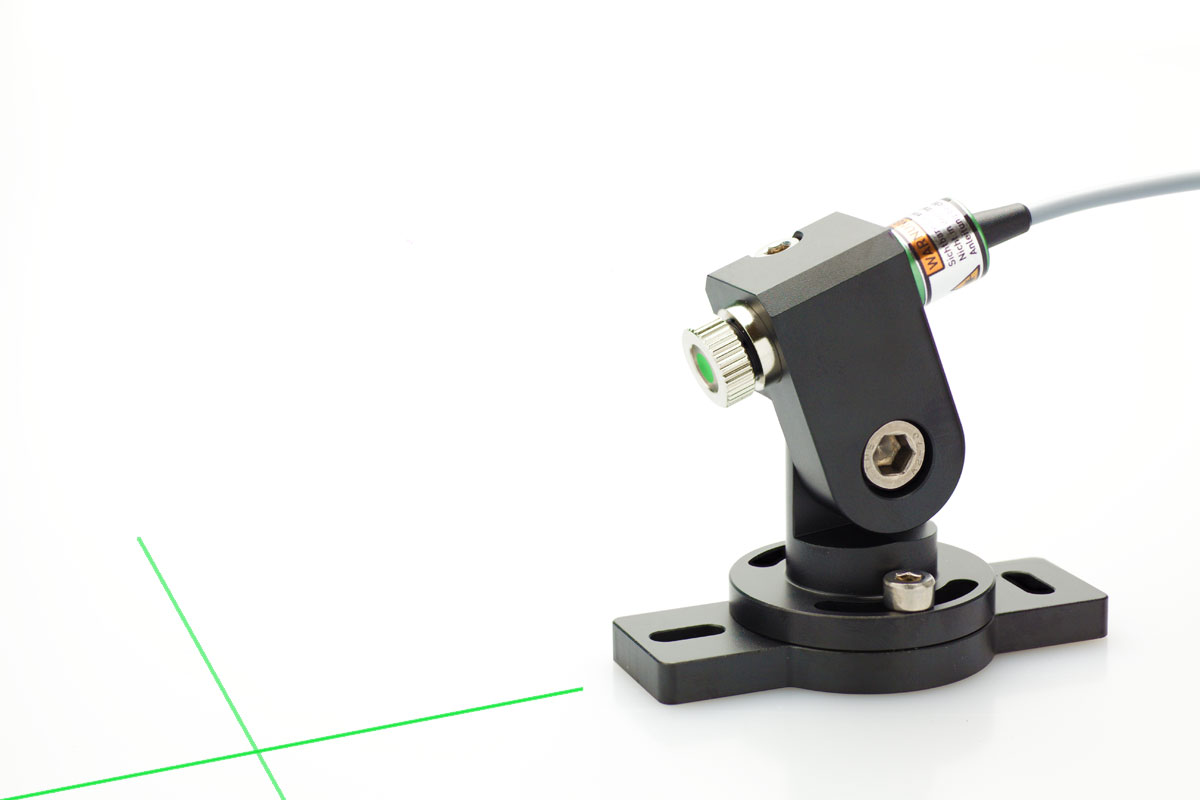

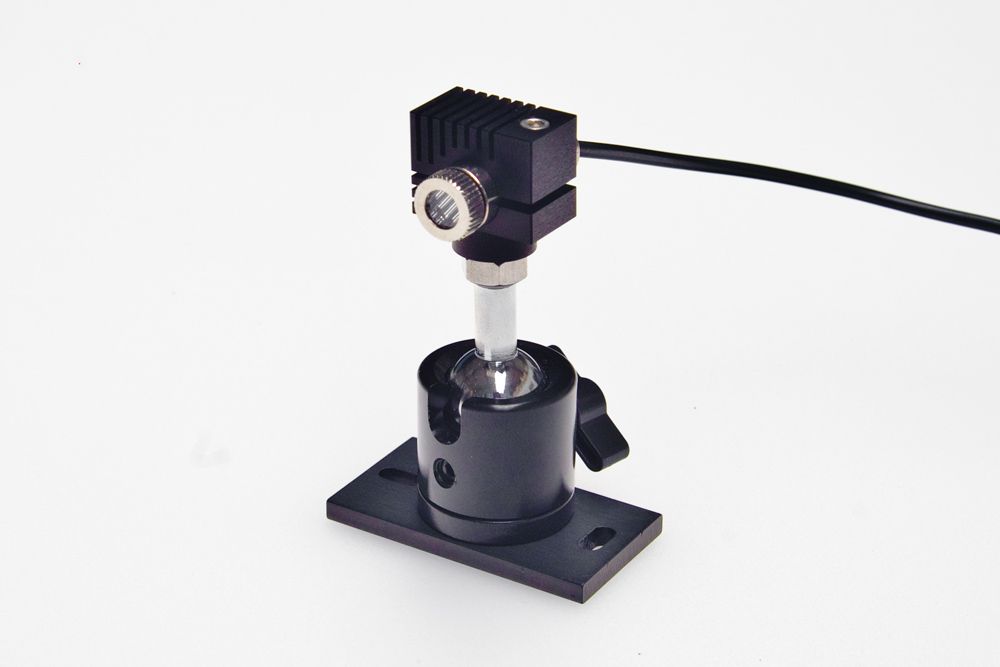

Various brackets, which are adjustable in several different axes, for mounting to the machine or the workplace, are selectable and included in the scope of supply. This makes it possible to set practically any beam position. Adjustment is possible in all directions. Clamping of the module is very stable.
Our Design Department is always at your disposal to discuss customer-specific requirements.
Electrical connection
230V Version: The 230V version includes a cable with DC connector, and fitting plug type power supply.
12 - 25V version: The laser modules are equipped with a flexible connecting cable. A small adaptor electronics is shrinked into the cable. Connecting ends are equipped with wire termination, to connect to any kind of power supply or distributing bus. A reverse voltage protection is mandatory.
TECHNICAL DETAILS
| Laser power: |
ca. 40 mW |
| Wavelength/Color: |
520 nm GREEN |
| Drawing angle: |
selectable |
| Focus range: |
ca. 5cm up to infinity |
| Minimum line width: |
<1mm at close distance |
| Power supply: |
Plug type psu for 100- 240VAC, open wires for 24VDC |
| Laser class after installation: |
Class 1, check safety information |

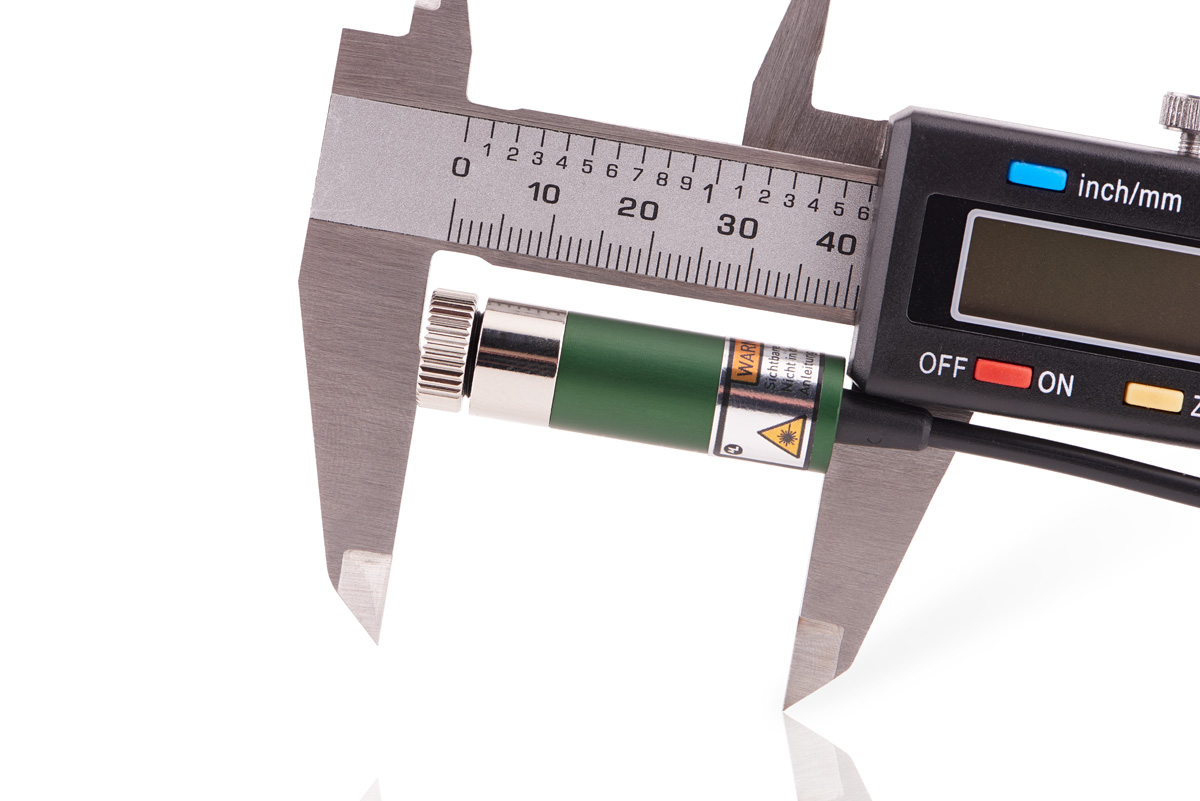

| Dimensions module: |
12 x 37/42mm |
| Temperature range |
- 10°C - +45°C |
| Lifetime: |
typ. > 25.000 h |
CROSS SIZE
Depending on the particular use case, modules with different beam angles can be selected, which generates the size of the laser cross. The larger the beam angle, the larger the crossed line will be. For our OEM modules, the following angles are available:
| Angle |
Distance |
Line length approx. |
| 15° |
1 m |
25 cm |
| 25° |
1 m |
45 cm |
| 45° |
1 m |
82 cm |
| 55° |
1 m |
1 m |
| 75° |
1 m |
170 cm |
| 100° |
1 m |
230 cm |
The cross size increases linearly as the distance increases. Therefore at 2 m, the cross size is also twice as big.
LINE WIDTH

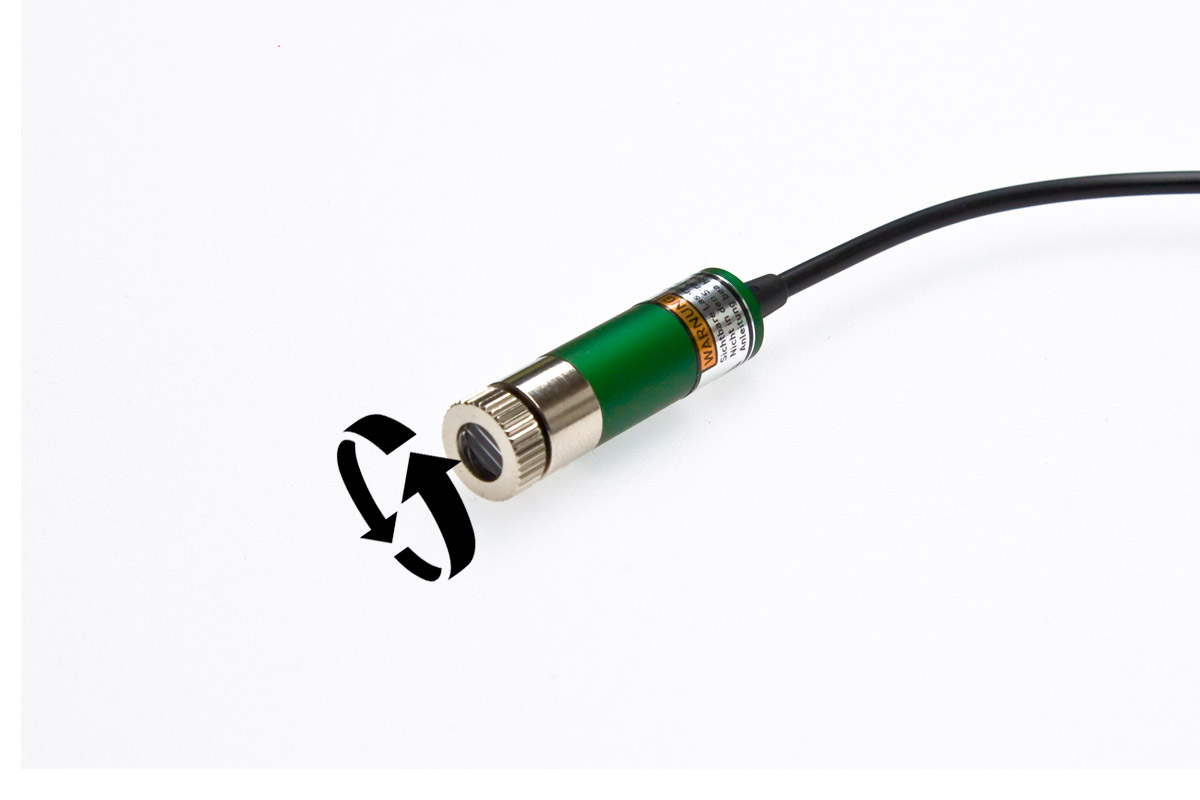

On our 12mm modules, the line width (also known as "focus") can be adjusted quickly and easily to the desired size or distance. The optics are mounted in the brass ring on the front, and can be adjusted very easily and safely with a fine thread. This makes it possible to adjust the line width to the technically feasible optimum setting for any distance desired. Once the desired line width has been located, the optics are secured in the thread with thread locker. We would be happy to set the focus to a predetermined value for you upon request.
VISIBILITY AND BRIGHTNESS
The brightness of the laser line is determined by many factors. As a principle:
- Line length: The longer the line, the lower the brightness, as the light output is distributed across a larger surface area
- Laser colour: Green is significantly more effective than red or blue
- Operating surface: The darker and more matte the surface, the dimmer the light appears
- Ambient brightness: The brighter the ambient light, the dimmer the laser line appears. This is determined by the human eye, which reduces its sensitivity to suit the level of ambient brightness. In direct sunlight, it is very difficult to even recognise a laser line, as the retina is already saturated.
- Laser output: The higher the output of the laser, the brighter the laser line appears
LASER SAFETY
You will receive further, detailed information with each delivery of our line laser modules and associated equipment. We are at your disposal and would be happy to advise in this matter.
EQUIPMENT/OPTIONS
The modules are equipped as standard with a high-quality, aspherical acrylic glass lens, which enables an excellent beam quality and focus of the laser beam. The module can optionally be fitted with a three-lens glass collimator. This primarily has an effect on the temperature stability of the focus. The standard acrylic lenses may alter the focus in case of larger temperature differences, which can cause a change in the beam width. Where the operating temperature in the module's installation location fluctuates in the range +/-5°C, an acrylic glass lens is preferable, because it offers slightly better focusing at short distances than glass optics, which in turn offer better beam characteristics in the long-distance range (>2 m). If, however, larger temperature fluctuations occur, the glass lens should be chosen, so that the focus does not shift.
Note
Pay attention to the class of the laser!
OPTIONAL
- Glass collimator, increases stability in case of temperature fluctuations
We are at your disposal to respond to any questions about classification in your environment.
Do you require a written quotation or larger number of units? No problem! Contact us, we would be happy to produce a quotation taking account of your individual requirements!
