Red line laser module 150 mW with high visibility for integration into machines or any other industrial environment. Adjustable and glueless fixable focus setting.
The new MediaLas line laser modules have been developed for use in industrial environments. For the first time a fixable adjustment of the focus is possible, so the focus or the line width can be changed at any time without performing a glueing operation. Alongside small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a very long service life. Temperature range is specified down to -15 ° C.
Electrical connection

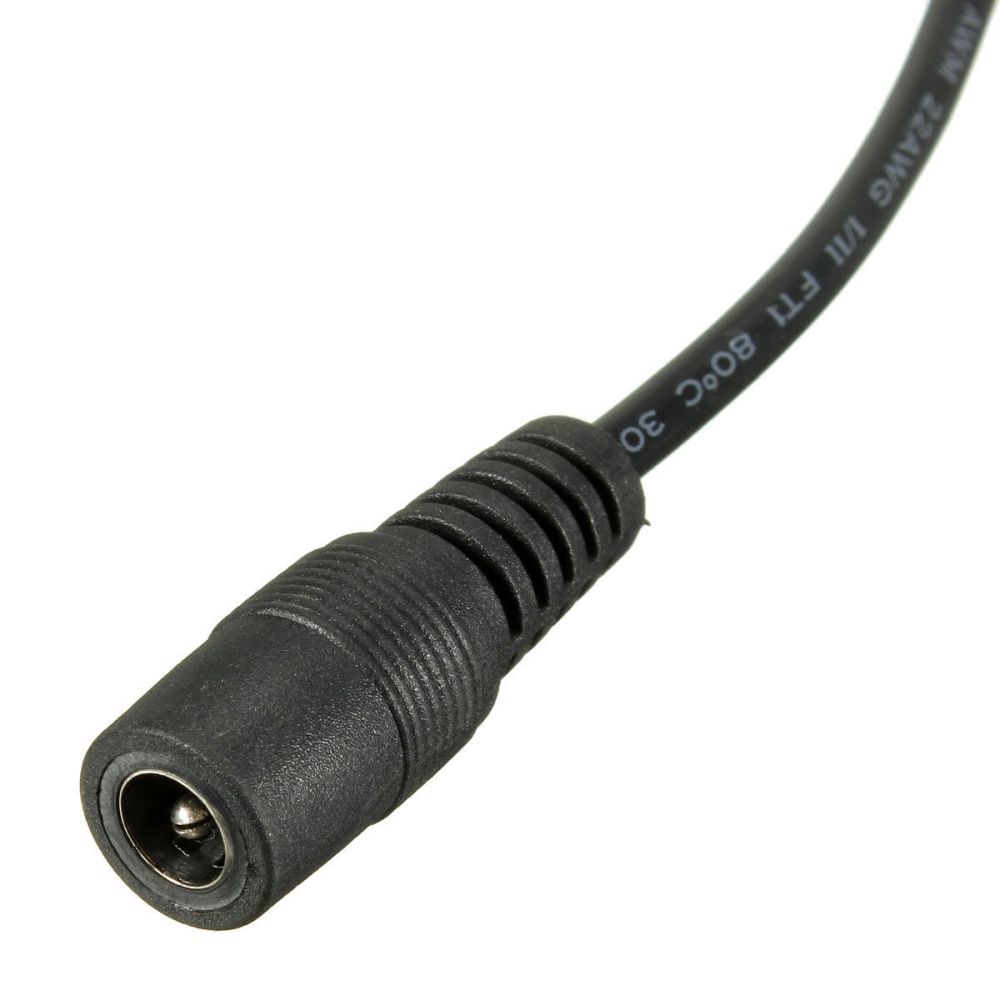

Barrel connector: The 5V version has a supply line with round barrel connector 5.5/2.1.
230V Version: The 230V version includes a cable with DC connector plus fitting plug type power supply.
12 - 25V version: The laser modules are equipped with a flexible connecting cable. A small adaptor electronics is shrinked into the cable. Connecting ends are equipped with wire termination, to connect to any kind of power supply or distributing bus. A reverse voltage protection is mandatory.
Technical details
| Laser power: |
150 mW |
| Wavelength/Color: |
638 nm BRIGHT RED |
| Projection angle: |
selectable |
| Divergence: |
typ. <1 mrad |
| Power supply: |
5 VDC or 12 -24 VDC |
| Length of cable: |
Ca. 1 m |
| Laser class: |
Class 1/2 |
| Dimensions Laser Module: |
16 x 68 mm |
| Temperature range |
-15°C - +45°C |
| Operating time: |
24h per day |
| Typical lifetime: |
typ. > 25.000 h |
VISIBILITY AND BRIGHTNESS
The brightness of the laser line is determined by many factors. As a principle:
- Line length: The longer the line, the lower the brightness, as the light output is distributed across a larger surface area
- Laser colour: Green is significantly more effective than red or blue
- Operating surface: The darker and more matte the surface, the dimmer the light appears
- Ambient brightness: The brighter the ambient light, the dimmer the laser line appears. This is determined by the human eye, which reduces its sensitivity to suit the level of ambient brightness. In direct sunlight, it is very difficult to even recognise a laser line, as the retina is already saturated.
- Laser output: The higher the output of the laser, the brighter the laser line appears
LASER SAFETY
You will receive further, detailed information with each delivery of our line laser modules and associated equipment. We are at your disposal and would be happy to advise in this matter.
Note
- Pay attention to the class of the laser!
- Our Design Department is always at your disposal to discuss customer-specific requirements.
We are at your disposal to respond to any questions about classification in your environment.
